Heat transfer fluid cooling

Trim cooling and heat recovery on the hot oil circuit that heats the esterification and polycondensation reactors.

Recommended type

Plate & Block Heat Exchanger

The circuit runs far above anything an elastomer survives, which removes gasketed construction from the conversation before any other consideration. A welded block keeps the thermal density of a plate pack at that temperature and still opens for cleaning; shell & tube is the alternative where a code stamp decides it.

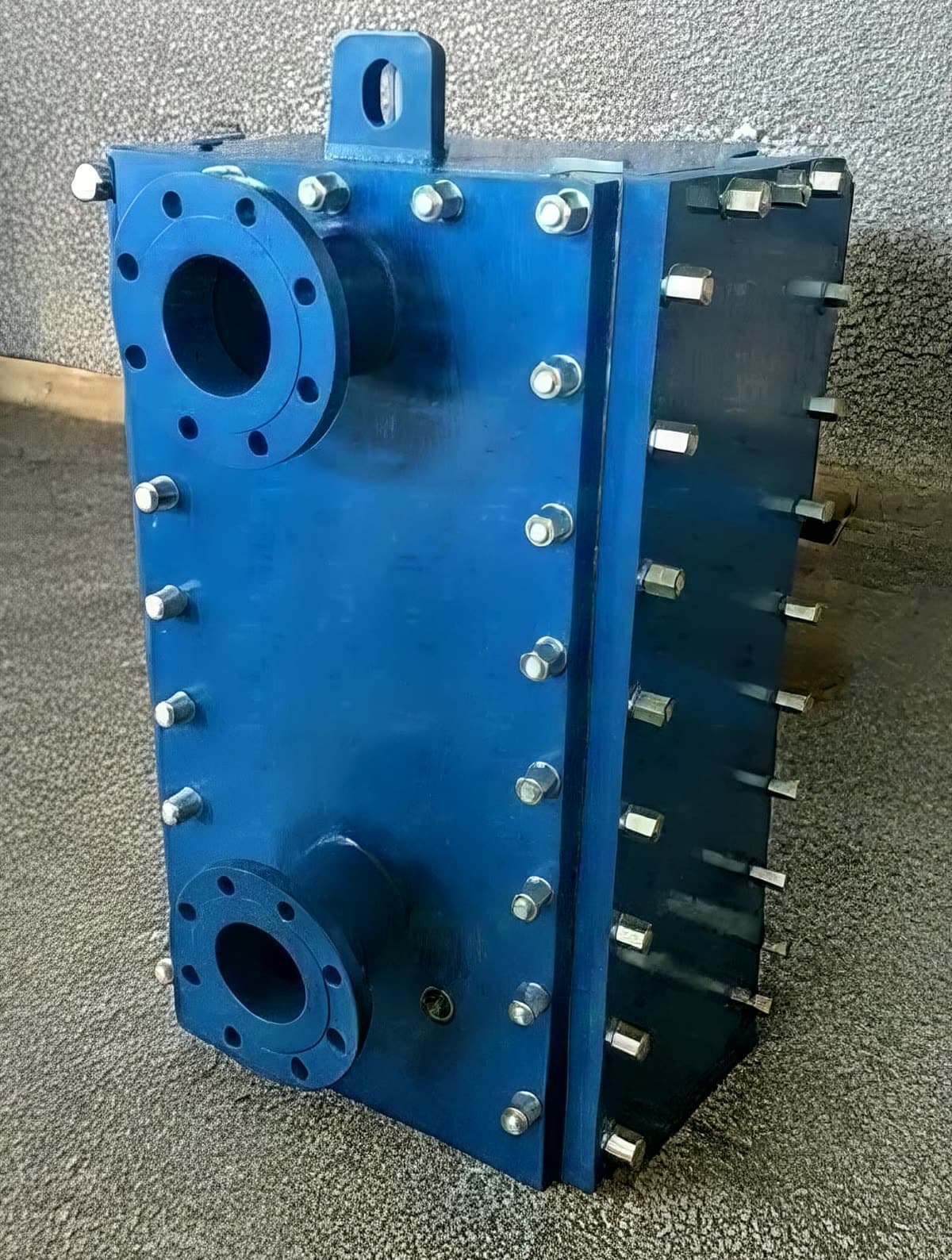

Every plate pair is welded at the four corners of the pack, and the corner girders sit tight on the welded corners. Studs, screwed into tapped holes in the girders and heads, stand out all round each face of the frame; the side panels slide over them and are held by nuts. Removing the panels opens both sides of the block for mechanical cleaning.
Every plate pair is welded at the four corners of the pack, and the corner girders sit tight on the welded corners. Studs, screwed into tapped holes in the girders and heads, stand out all round each face of the frame; the side panels slide over them and are held by nuts. Removing the panels opens both sides of the block for mechanical cleaning.
Plate & Block: enquire
